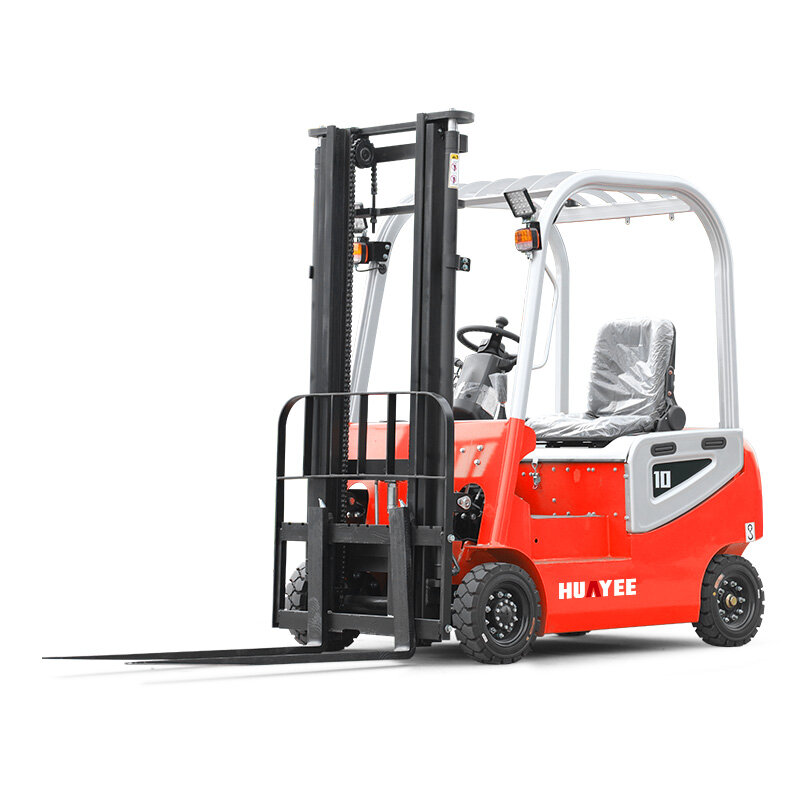

  • 1.5-Tonelectric forklift
    1.5-Tonelectric forklift Compact, agile, low-noise and eco-friendly — the ideal choice for warehouses and other industrial applications, delivering a safe, efficient and reliable solution for your material handling needs. Plus, our professional after-sales service team responds p
    • Max. Lift Capacity:   1500kg
    • Lift Height:   3000mm
    • Fork Length:   1220mm
    • Overall Width:   1200mm
    • Get a Quote
  • Features
  • Specs
  • Attachments
  • Applications
  • Related Products
Advantages/ Features
Specs
Model 1.5 Ton
Max Lifting Capacity 1500kg
Fork Length 1220mm
Fork Size 1220*100*35mm
Lifting Height 3m (2-Stage Mast)
Travel Motor 4kW AC Motor
Hydraulic Motor 3kW AC Motor
Battery 5 Lead-Acid Batteries
Front Axle 220 Cast Steel Axle
Tire Front 650-10 (Solid) / Rear 500-8 (Solid)
Rear Axle 1.5 Ton 6-Hole Dedicated Axle
Braking Method Handbrake + Hydraulic Brake
Steering Method Hydraulic Power Steering
Turning Radius 180° Zero-Turn
Gradeability 15°
Vehicle Weight 2300kg
Overall Dimensions 2150*1200*2100mm
